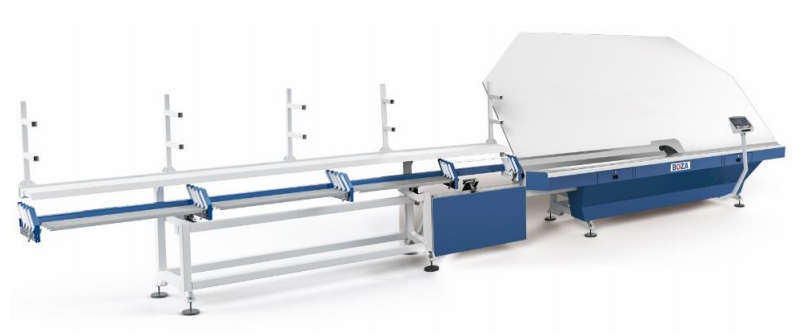

BOZA Fully Automatic Bending Machine (Extended Type) FB-G
$42,000.00
Skip to product information
BOZA Fully Automatic Bending Machine (Extended Type) FB-G
$42,000.00

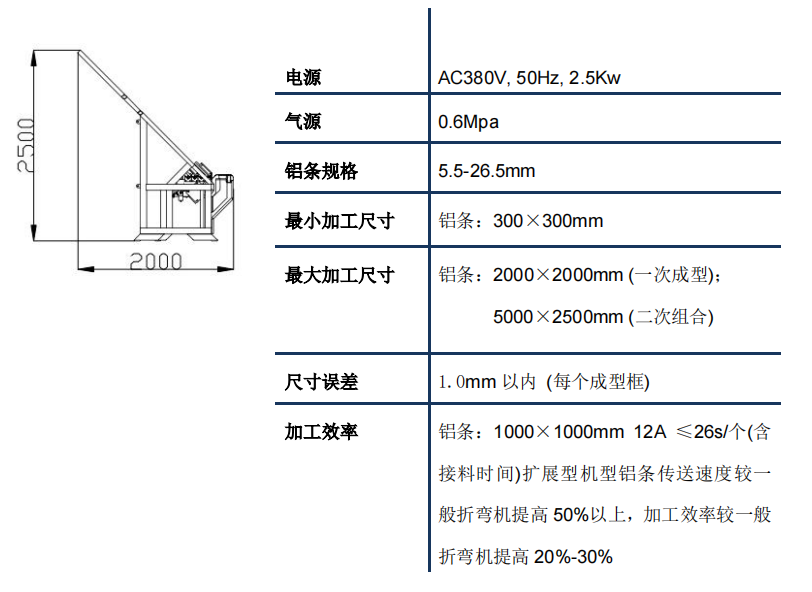

Power Supply AC380V, 50Hz, 2.5Kw
Air Source 0.6Mpa
Aluminum Strip Spcifications 5.5-26.5mm
Minimum Processing Size Aluminum Strip: 300×300mm
Maximum Processing Size Aluminu Strip: 2000×2000mm (single forming); 5000×2500mm (secondary assembly)
Dimensional Tolerance Win 1.0mm (per forming frame)
Processing Efficiency Aluminum Strip: 1000×1000mm 12A ≤26s/piece (including unloading time); uminum strip conveying speed of the extended model is over 50% faster than general bending machines, and the processing efficiency is 20%-30% higher than general bend
