Product Overview
The Hanjiang HJ-IGSR Automatic Insulating Glass Sealing Robot is a high-performance sealing solution designed for double-glazing production lines. Built with advanced motion control technology, this machine delivers precise, consistent, and efficient sealing for insulating glass units of various sizes. It is engineered to handle silicone, polysulfide, and polyurethane sealants, making it a versatile choice for modern glass processing facilities.
Key Features
Advanced Motion Control System — High automation level with intuitive operation, ensuring stable and reliable performance throughout production cycles.
Human-Machine Interface (HMI) — Real-time working status monitoring and built-in fault diagnosis system for quick troubleshooting and reduced downtime.
Electronic Mixing Ratio Regulation — Precise sealant mixing ratio with easy digital adjustment, guaranteeing consistent seal quality across every unit.
Air-Flotation Support & V-Belt Conveying — Clean, smooth glass transportation with convenient loading and unloading, minimizing surface contact and potential damage.
Automatic Sealing Depth Detection — Intelligent depth sensing ensures uniform sealant application along all glass edges.
Auto-Adjustable Sealant Volume — Dynamic glue flow control adapts to different glass thicknesses and speeds automatically.
Double-Layer Gluing Capability — Supports dual-layer sealing for enhanced insulating performance.
Optional Automatic Thickness Measurement — Detects glass thickness automatically for optimized sealing parameters.
Optional Offset Glass Gluing Function — Handles stepped/offset insulating glass configurations.
Optional Auto-Cleaning Mixing System — Self-cleaning mechanism reduces maintenance time and prevents clogging.
Optional Sealant Heating System — Component A heating for optimal sealant viscosity in varying workshop temperatures.
Compatible Sealants
Silicone sealant
Polysulfide sealant
Polyurethane sealant
Technical Specifications
表格
Parameter Specification
Max. Glass Size 2500 × 3000 mm (2000 × 2500 mm)
Min. Glass Size 300 × 450 mm
Sealing Depth ≤ 20 mm
Sealing Width 6 – 20 mm
Sealing Speed (Straight) 0 – 40 m/min
Conveying Load 300 kg/m
Insulating Glass Thickness 12 – 48 mm
Ambient Temperature 7 – 50 °C
Power Supply 3P 380V / 1P+N 220V, 50Hz, 23kW
Air Pressure 0.7 MPa
Machine Dimensions (L×W×H) 10460 × 3000 × 3500 mm / 8030 × 3000 × 3500 mm

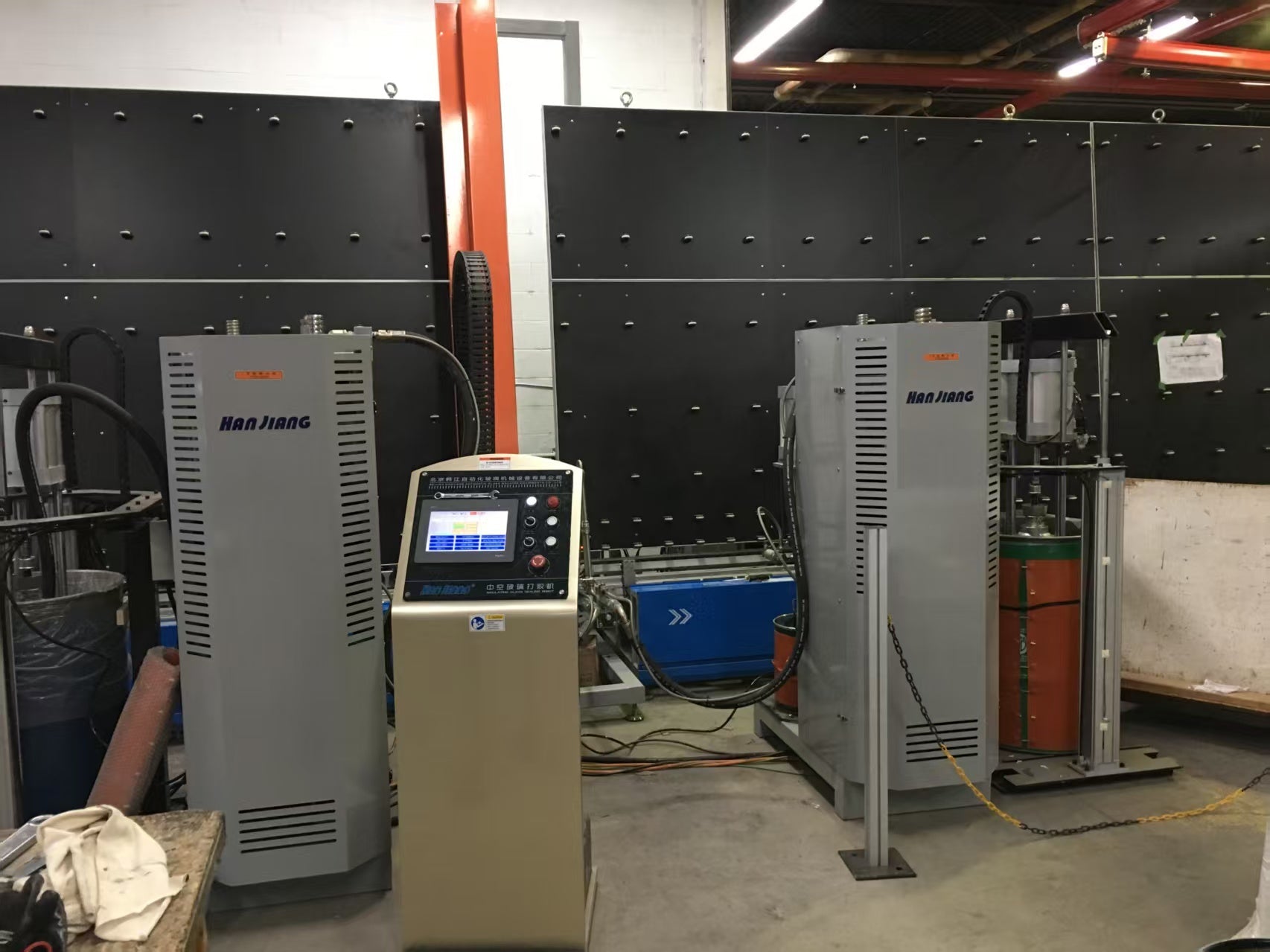

Hanjiang Automatic Insulating Glass Sealing Robot
