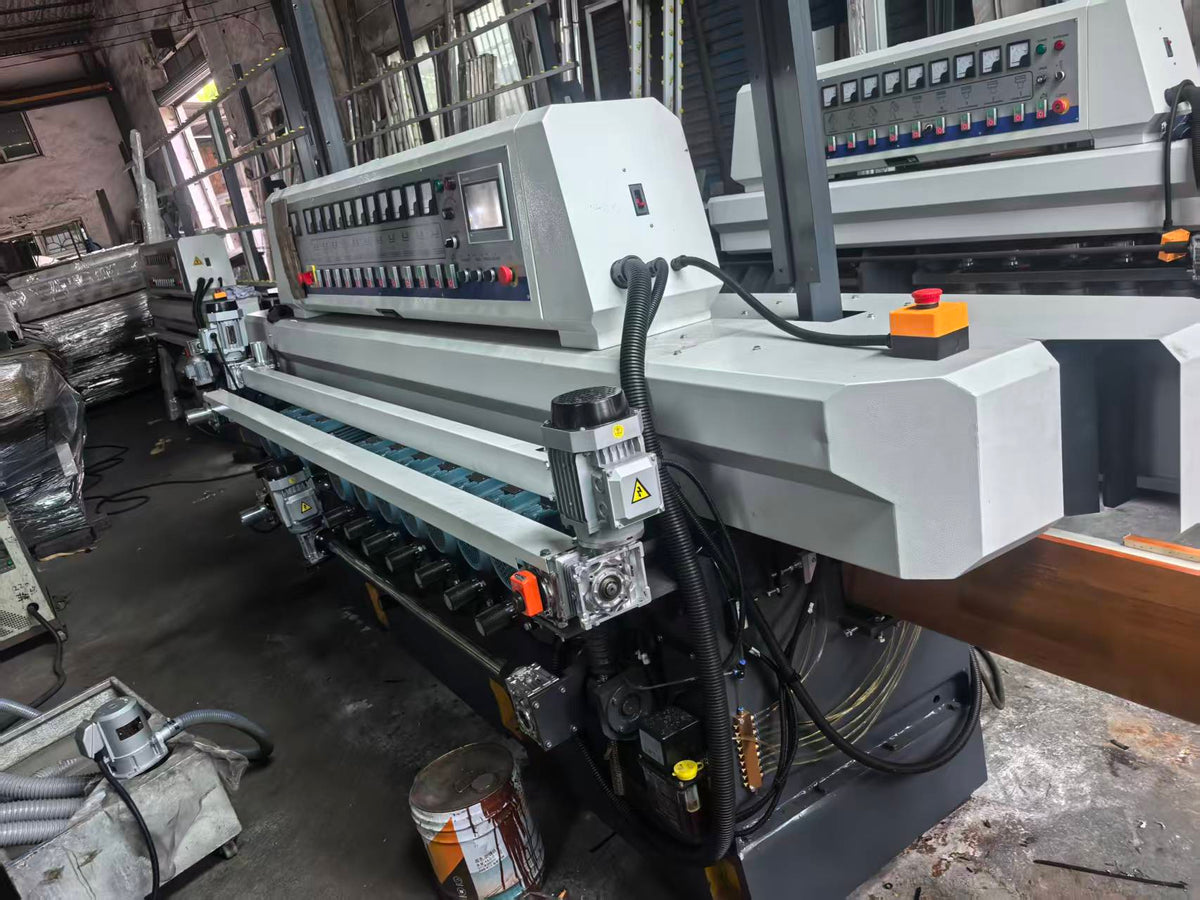

Handling the top ten problems of glass edging machine

Troubleshooting methods for glass edging machine failures: Handling several common situations of straight edge machines. I. Uneven level (the glass has a large and small end) If the machine becomes uneven after being used for a period of time, the reasons are: 1. Caused by soft foundation A cement foundation that has not been compacted cannot bear the self-weight of the main machine, causing the main machine to sink and resulting in unevenness. The needs to be compacted, and the machine body leveled. 2. Caused by the feet of the glass support not being fixed. When grinding large glass, it easy to shift, leading to differences in level. The support needs to be corrected. 3. For machines used for a long time, only a small part of conveyor chain blocks are replaced. The new and old blocks are used together, and the height difference causes the ground glass to have a large and small end. All blocks be replaced or the entire conveyor chain replaced. 4. The conveyor chain causes unevenness. II. The head, tail, or middle cannot be polished. head and tail cannot be polished mainly because the chain* at the rear bone row on the glass inlet side has shifted, causing the glass to shift when moving forward., disassemble the machine sleeves at both ends, and correct the height and angle of the two chain* on the glass outlet side, based on the two chain* on gearbox being consistent. The middle cannot be polished or the polishing is poor: caused by the front and rear pressure plates being too loose, causing the glass to sink during.
